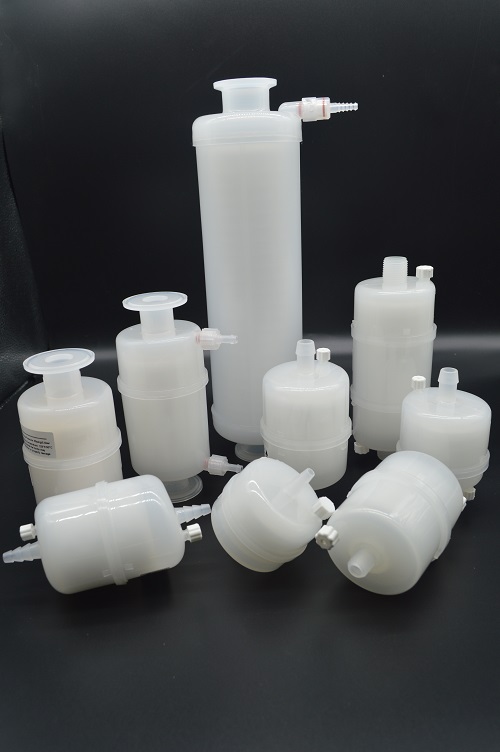

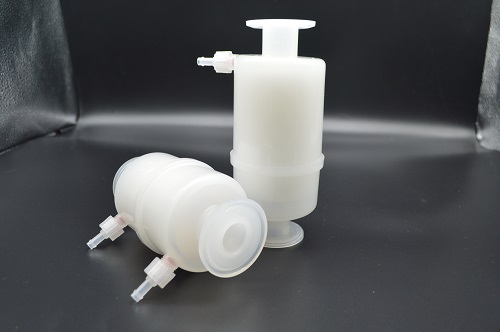

CAPFLUX™ Series Capsule Filter------Sterile Grade PES Material
CAPFLUX™ Series Single Use Disposable Capsule filter own wide range of filter media for utilizing in pharma, biotechnology, lifescience and semiconductor application process etc. All filter with 100% Integrity test, it provide greater bacteria and particle removal at high flow rate and low pressure drop. Perfect Equivalent on Kleenpak, OptiCap, MidiCap etc.
Feature:
- Disposal design for more convenient and anti-contaminate;
- Available on Online Steam Sterile(126℃ 30min 5cycles) and Gamma Sterile(<40~50Kgy);
- Widely Range of Chemical Compatibility;
- 100% Integrity Test for all capsule filter cartridge;
- Mainly for Particle, Bacteria, Virus and Micro plasma removing.
Application:
- Fine Chemical
- Food and Beverage
- Pharmaceutical
- Bio Pharma
- Fermentation
- Semiconductor
Material Construction:
| Filter Media | Sterile Grade PES |
| Supporter | PP No Woven Fiber |
| Cage | PP/Anti Gamma PP |
Specification:
| Length | 1.25’’, 2.5’’, 3’’, 5’’, 8’’, 10’’, 20’’ |
| Micron Rate | 0.1μm~5.0μm |
| Diameter -OD | 68mm, 85mm |
| Surface Area | 200 cm²，500 cm²，1300 cm², 2500 cm², 6300 cm², 12500 cm² |
Operation Condition:
| Max. Pressure Drop | 0.35Mpa@25℃ |
| 0.20Mpa@75℃ | |
| Max. Working Temp. | 80℃ |
| Change-Out ∆P | 0.25Mpa |
| Burst Pressure | 0.85Mpa |
| Sterilization | AutoClave Steam Sterile(126℃ 30min 5cycles)
Gamma Sterile(<40~50Kgy) |
Bacteria Challenge：
| B.diminuta | LRV>7 | 0.22μm |
| Serratia Marcescens | LRV>7 | 0.45μm |
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments.
Order Information:
| Application | Type | Material | Length | Micron | Adaptor | Sterile |
| F | CP | SS | 05 | B | 1 | PG |
| M-Bio Pharma
F-Food& Beverage |
CP-Capsule Filter | SS-Sterile PES
SD-Double layers PES |
01-1.25’’
02-2.5’’ 03-3’’ 05-5‘’ 08-8‘’ 10-10‘’ 20-20‘’ |
A-0.1μm
B-0.2μm B2-0.22μm C-0.45μm F-1.0μm AB-0.2+0.1μm BC-0.45+0.2μm BB-0.2+0.2μm |

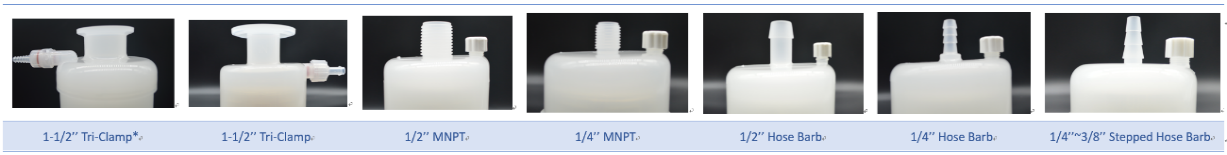

1-1-1/2’’Tri-Clamp
2-1/4’’ MNPT 3-3/8’’MNPT 4-1/2’’ MNPT 5-1/4’’ Hose Barb 6-3/8’’ Hose Barb 7-1/2’’ Hose Barb 8-1/4’’~3/8’’Stepped Hose Barb |
N-No Sterile
AS-AutoClave Sterile GS-Gamma Sterile PG-Pre Gamma Sterile |
*Only for 10”&20″
