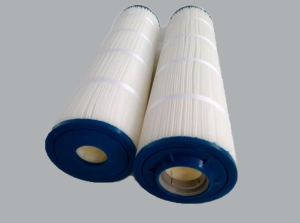

PE Pleated Cartridge Filter---Swimming Pool Pleated Cartridge Filter
AQUAFLUX™ Series PE Swimming Pool pleated cartridge filter with good cost and performance rate, Ideal for per filtration and clarification in swimming pool application.
Feature:
- High Flow filter for fewer change-outs and lower maintenance cost
- Pleated media provides higher flow rate and lower initial pressure drop
- High surface area provides higher loading capacity for longer lifespan
- Thermal welding process and free of any adhesive
| Material Construction | |
| Filter Media | Polyester
Glass Fiber |
| Supporter | PP No Woven Fiber |
| Core | PP |
| Specification | |
| Length | 9-5/8”(245mm)
19-1/2”(459mm) 30-3/4”(781mm) |
| Micron Rate | 0.35μm~150μm |
| Diameter -OD | 7-3/4”(197mm) |
| Operation Condition | |
| Max. Pressure Drop | 0.35Mpa@25℃ |
| 0.25Mpa@120℃ | |
| Max. Working Temp. | 60℃ |
| Charge Out Pressure Drop | 0.25Mpa |
Order Information
| PEP | 09 | F | O | P | S |
| PEP-Polyester pleated
GP-GlassFiber pleated |
09=
9-5/8’’ 19= 19-1/2‘’ 30= 30-3/4‘’
|
3C-0.35μm
F-1.0μm H-5.0μm I-10.0μm |
O-DOE
|
P-PP core
4S-304 SS 6S-316LSS |
S-Silicone
E-EPDM N-NBR V-Viton |
